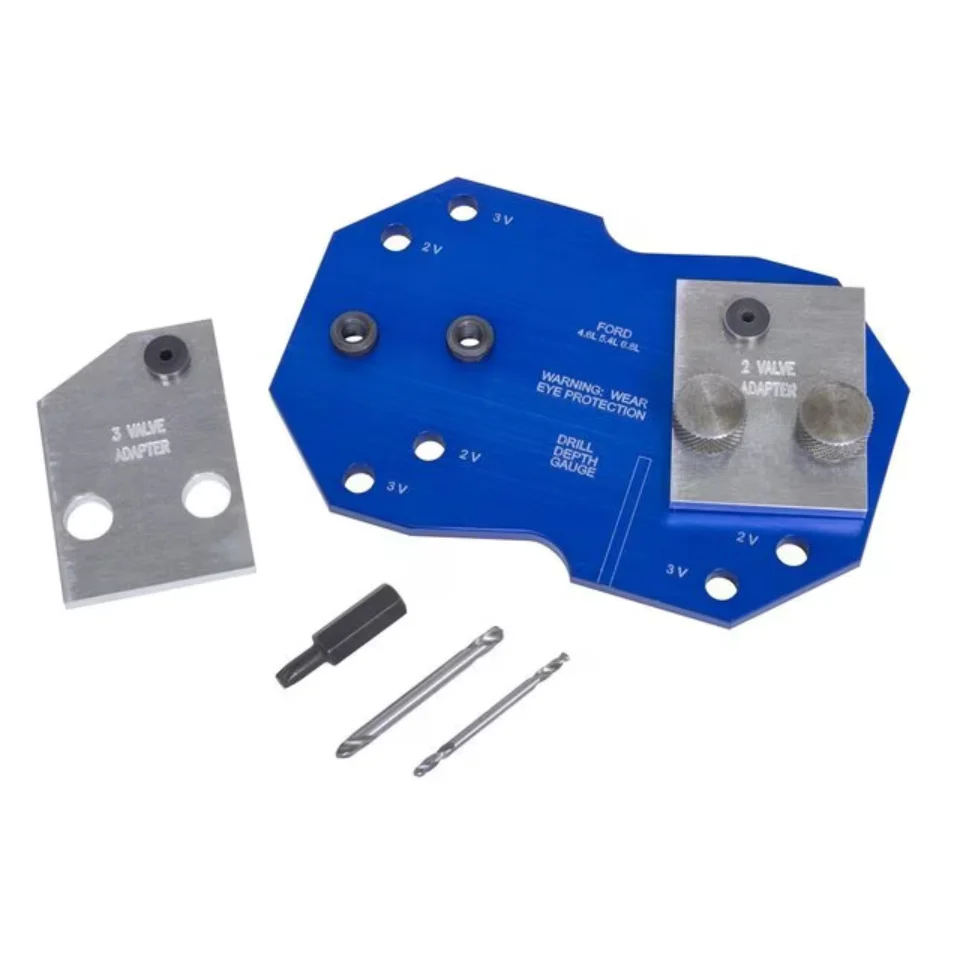

Lisle 68500 Manifold Drill Template for Ford 4.6L, 5.4L AND 6.8L
Helps Make a Really Tough Job Easier to Complete. Helps Beat the Flat Rate.
Designed to remove broken exhaust manifold studs on 4.6L, 5.4L and 6.8L V10 2 valve and 3 valve Ford Triton engines without damaging the cylinder head. Interchangeable plates and alignment pins help center drill on the broken stud. Depth gauge for drilling is marked on the template. The stud extractor is then used to remove the broken stud.
| Part Number | Description |
|---|---|
| 68510 | Base Plate for Ford, Blue |
| 68530 | 2 Valve Adapter |
| 68550 | 3 Valve Adapter |
| 68590 | Knurled Thumb Screw |
| 68600 | Nylon Washer |
| 68630 | Double Ended 1/8" Drill Bit |
| 68640 | 3/16" Drill Bit |
| 68670 | Short Alignment Pin |
| 68680 | Long Alignment Pin |
| 68690 | Stud Extractor #2 |
WARNING: Cancer & Reproductive harm www.P65Warnings.ca.gov
